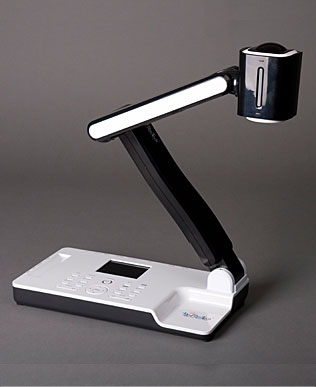

The i3330 is designed to be the most desired portable document cameras in the market. It boosts sharp and crystal clear native SXGA image quality, high speed 9x optical and 12 x digital zoom, digital imaging feature suite including image freeze, split, mirror, rotation, title freeze, and picture in picture, and multiple input and output terminals. In addition, the i-3330 allows you to save up to 400 images on board with non-volatile memory storage capability. It is a true plug and play system, which means no software installation necessary. You also have the option of saving images to a removable USB thumb drive with a built-in USB 2. 0 port. A built-in LCD screen is located in the center of the front panel that allows you to face your audience at all time while staying on top of the presentation materials. The i-3330 offers a great option for cost conscientious school districts that desire a high performance and full featured document camera on a budget.

  • SXGA resolution powered by 3 Megapixel CMOS Sensor
  • 9x optical and 8 x digital zoom
  • High speed auto focus and iris
  • Active VGA pass through with sound
  • Brillian Digital Image Suite (Title, Split, Text, PIP, Positive/negative conversion)
  • Built-in LCD Screen
  • Dual USB 2.0 ports and USB Thumb Drive Removable Storage
  • 400 Image save on board with non-volatile memeory
  • RS232 for external control
  • Multiple output terminals for flexible connectivity
  • Eco-friendly LED body lighting
  • 360 degree controllable with remote control
  • Kensington lock to protect your investment
  • Model No. : i-3330
  • Sensor : 1/3" CMOS
  • Total Pixel : 3 Megapixel

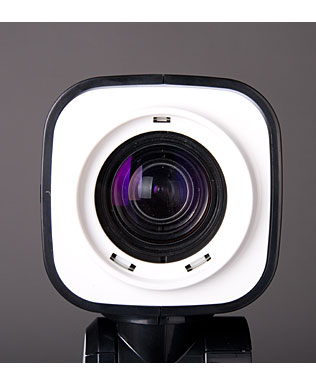

  • Zoom : 9x optical, 8x digital
  • Frame Rate : 24
  • Shooting Area : Max: 13.5" x 10.6" /34.3 cm x 26.9 cm; Min: 0.1" x 0.1"/0.3 cm x 0.3 cm
  • Focus : Auto/manual
  • Native output signal : SXGA(1280x1024)
  • Converted output signal : XGA, WXGA, WSXGA
  • Resolution (Horizontal) : More than 750 TV lines
  • White Balance : Auto/manual
  • Color Adjustment : Yes
  • Brightness Adjustment : Yes
  • Image Capture : Yes, 400 NON-volatile images
  • Video Recording : Yes, with sound
  • Image Mirror : Yes
  • Image Rotation : 90°, 180°, 270°
  • Image split : Yes
  • Image Freeze : Yes
  • Picture In Picture : Yes
  • Title freeze : Yes
  • Text Mode : Yes
  • Black and white/color conversion : Yes
  • OSD : Yes

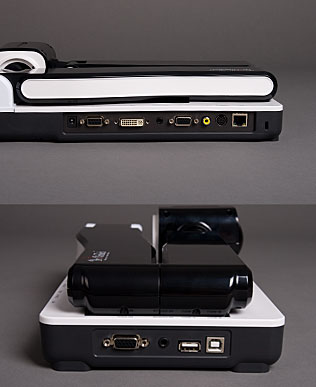

  • Input Terminals : VGA x1, AUDIO x1
  • Output Terminals : VGA x1, VIDEO x1, AUDIO x1, S-VIDEO x1
  • Other Terminals : USB2.0:Host×1(Mouse, Memory stick), Slave×1(USB camera/Build-in image download); USB driver and software: Windows 2000/XP/Vista Mac OS10.4 or above Driver plug and play; RS232: (computer controllable) x1
  • Remote Control : Yes(360°controllable)
  • Built-in LCD screen : Yes
  • Kensington Lock : Yes
  • Light Source : Embedded LED lamp
  • Operating Temperature : 32°F to 104°F/0°C to 40°C

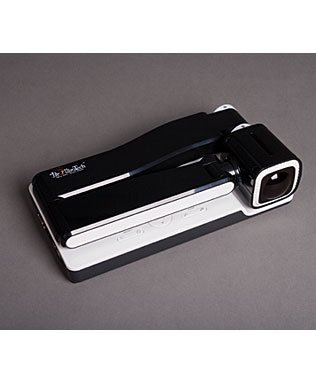

  • Dimensions : Folded:12.6"×6.6"×3.7"/ 32cm x 16.8cm x 9.4cm; Setup:19.7"×6.6"×19.3"/ 50cm x 16.8cm x 4.9cm
  • Power Supply : 12V DC power adapter
  • Weight(net) : 5.5lbs/2.5kg
