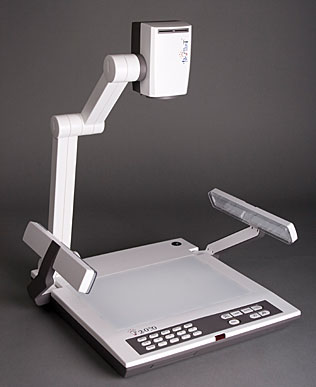

Brillian i-2090 is an entry level desktop document camera that offers basic funcationality at XGA resolution. It has built in A4 size backlight to offer slides, transparency, X-Ray and film negative viewing.
- 1/3” CMOS image sensor delivers native XGA resolution

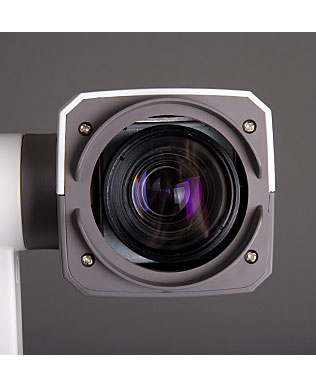

- 9x optical zoom and 12x digital zoom enable great detail viewing
- Image freeze, mirror, rotation, and text mode features
- 8 image internal memory save
- Active VGA pass through with sound

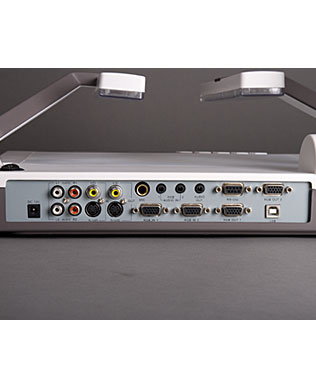

- Multiple input and output terminals including: 2 VGA inputs, 2 Audio inputs, 2 VGA outputs, C-Video output, S-Video output, and Audio output
- Plug and play USB2.0 image capture and video recording with sound. No need to install driver.
- Duel LED arm lights and A4 size built-in light box
- Sensor : 1/3" CMOS
- Total pixel : 1.32 Megapixel
- Zoom : 9x optical, 12x digital
- Frame rate : 20
- Shooting area : Max: 13.5" x 10.6" /34.3 cm x 26.9 cm Min: 0.1" x 0.1"/0.3 cm x 0.3 cm
- Focus : Auto/manual
- Native output signal : XGA(1024x768@60Hz)
- Resolution (Horizontal) : More than 650 TV lines
- White Balance : Auto/manual
- Color adjustment : Yes
- Brightness adjustment : Yes
- Image capture : Yes, 8 images
- Video recording : Yes
- Image mirror : Yes
- Image rotation : 180
- Image freeze : Yes
- Text mode : Yes
- Positive/negative conversion : Yes
- OSD : Yes
- INPUT TERMINALS : VGA x2, AUDIO x2
- OUTPUT TERMINALS : VGA x2, VIDEO x1, AUDIO x1, S-VIDEO x1
- OTHER TERMINALS : USB2.0 x1 USB driver and software: Windows 2000/XP/Vista, Mac OS10.4 or above. Driver plug and play RS232 (computer controllable) x1
- Remote control : Yes
- Light source : Arm light×2(LED) A4 size lightbox(LED)
- Operating temperature : 32° F to 104° F/ 0° C to 40° C

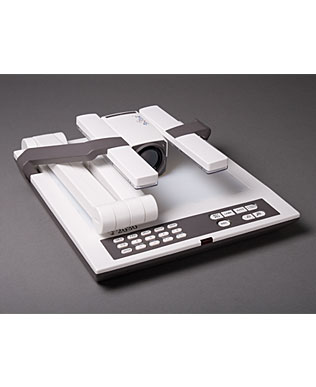

- Dimensions : Folded: 15.9" x 16.7" x 6.1"/ 40.4 cm x 42.4 cm x 15.5 cm Setup: 18.7" x 16.7" x 22.3"/ 47.5 cm x 42.4 cm x 56.6 cm
- Power supply : 12V DC power adapter
- Weight(net) : 11 lbs/5 Kg
|
